GAN Evaluation Report - Patient BMG07082017

Native→Venous Translation Metrics (Generated Venous vs Real Venous)

Targeted Slice 70 - Network-Normalized Analysis (Generated vs Real Venous)

0.817

SSIM Score

0.175

RMSE

0.112

MAE

Average Network-Normalized Metrics Across All Slices (103 slices) - Generated vs Real Venous

0.798

SSIM Score (Avg)

0.178

RMSE (Avg)

0.114

MAE (Avg)

Targeted Slice 70 - HU-Space Analysis (Generated vs Real Venous)

0.817

HU SSIM

175.4

HU RMSE

111.8

HU MAE

Average HU-Space Metrics Across All Slices (103 slices) - Generated vs Real Venous

0.798

HU SSIM (Avg)

177.8

HU RMSE (Avg)

114.1

HU MAE (Avg)

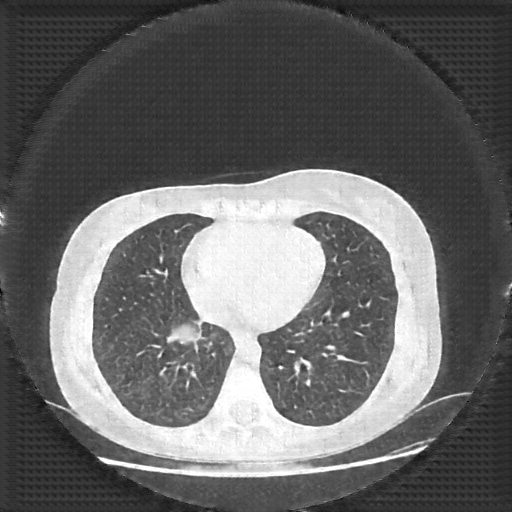

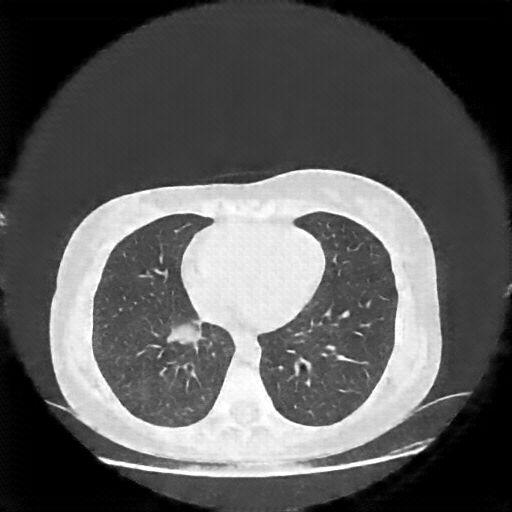

Targeted Slice 70 - Lung Window Analysis (Generated vs Real Venous)

0.584

Lung SSIM

174.9

Lung RMSE

111.2

Lung MAE

Average Lung Window Metrics Across All Slices (103 slices) - Generated vs Real Venous

0.572

Lung SSIM (Avg)

177.4

Lung RMSE (Avg)

113.6

Lung MAE (Avg)

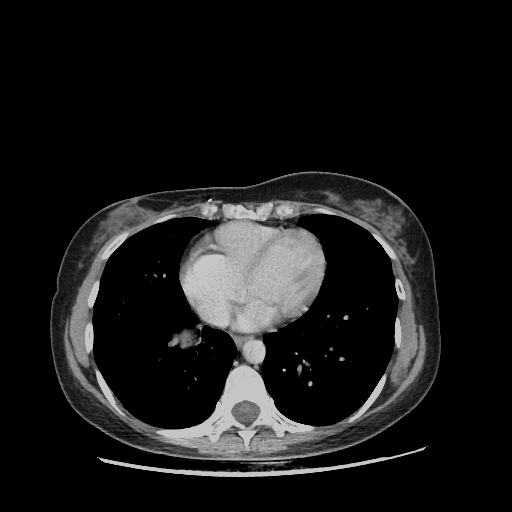

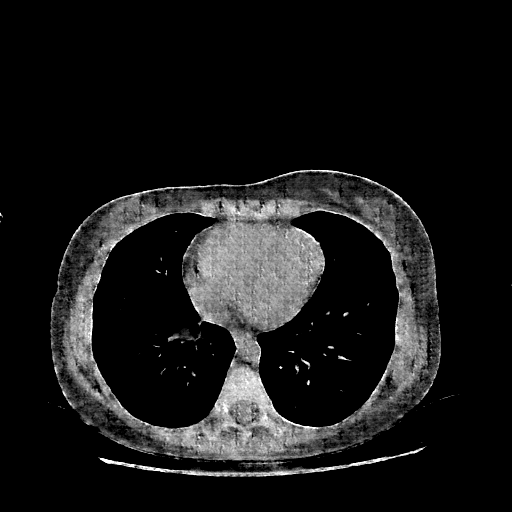

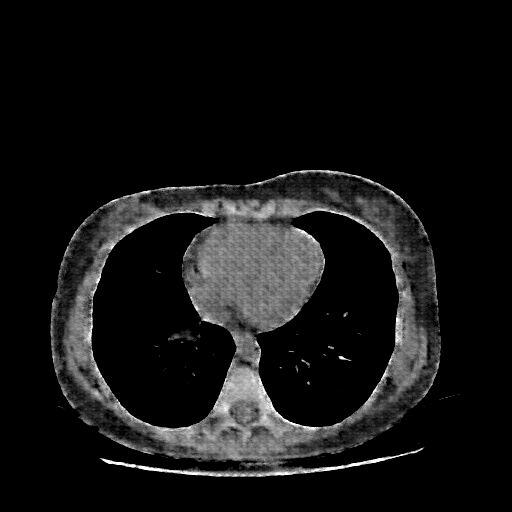

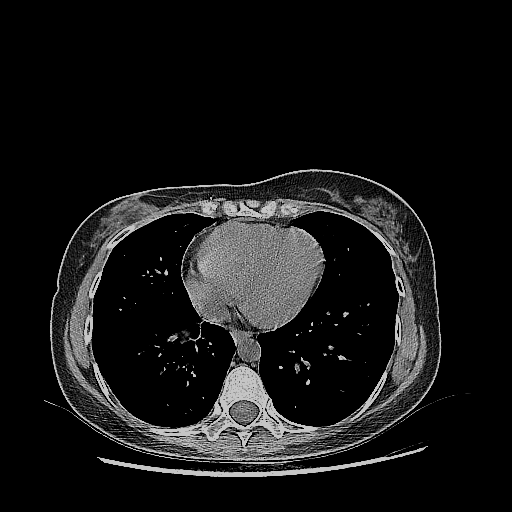

Targeted Slice 70 - Mediastinum Window Analysis (Generated vs Real Venous)

0.771

Mediastinum SSIM

40.0

Mediastinum RMSE

13.7

Mediastinum MAE

Average Mediastinum Window Metrics Across All Slices (103 slices) - Generated vs Real Venous

0.738

Mediastinum SSIM (Avg)

44.7

Mediastinum RMSE (Avg)

16.9

Mediastinum MAE (Avg)

Detailed Per-Slice Metrics

Slice ID	SSIM	RMSE	MAE	HU SSIM	HU RMSE	HU MAE	Lung SSIM	Lung RMSE	Lung MAE	Mediastinum SSIM	Mediastinum RMSE	Mediastinum MAE
BMG07082017_slice_0	0.801	0.170	0.110	0.801	169.9	110.1	0.582	169.6	109.7	0.689	46.0	20.0
BMG07082017_slice_1	0.811	0.160	0.104	0.811	159.8	103.6	0.599	159.4	103.2	0.693	45.2	19.4
BMG07082017_slice_2	0.810	0.162	0.105	0.810	162.4	105.2	0.596	162.0	104.8	0.691	45.7	19.5
BMG07082017_slice_3	0.824	0.148	0.096	0.824	147.7	95.9	0.616	147.3	95.5	0.695	43.8	18.4
BMG07082017_slice_4	0.829	0.147	0.095	0.829	147.3	94.8	0.621	147.0	94.4	0.699	42.6	17.8
BMG07082017_slice_5	0.811	0.156	0.101	0.811	156.4	101.2	0.600	156.1	100.8	0.694	45.2	19.0
BMG07082017_slice_6	0.803	0.163	0.106	0.803	163.3	105.9	0.587	163.0	105.5	0.694	45.3	19.1
BMG07082017_slice_7	0.793	0.170	0.110	0.793	169.7	109.7	0.576	169.4	109.3	0.693	45.8	19.4
BMG07082017_slice_8	0.784	0.175	0.113	0.784	174.8	112.7	0.567	174.6	112.4	0.694	46.6	19.7
BMG07082017_slice_9	0.780	0.180	0.116	0.780	179.8	115.6	0.559	179.6	115.2	0.694	47.0	19.9
BMG07082017_slice_10	0.783	0.174	0.112	0.783	173.7	112.0	0.565	173.4	111.6	0.699	47.0	19.6
BMG07082017_slice_11	0.790	0.170	0.110	0.790	170.5	110.0	0.572	170.1	109.6	0.704	46.8	19.2
BMG07082017_slice_12	0.788	0.174	0.111	0.788	173.8	111.1	0.567	173.5	110.6	0.704	46.9	19.2
BMG07082017_slice_13	0.799	0.172	0.109	0.799	171.7	109.5	0.578	171.4	109.0	0.710	45.5	18.3
BMG07082017_slice_14	0.806	0.170	0.108	0.806	169.6	107.6	0.584	169.3	107.2	0.716	44.8	17.6
BMG07082017_slice_15	0.814	0.167	0.106	0.814	167.3	106.3	0.593	167.0	105.9	0.721	44.3	17.0
BMG07082017_slice_16	0.812	0.168	0.107	0.812	167.6	106.8	0.593	167.3	106.4	0.723	44.8	17.0
BMG07082017_slice_17	0.817	0.168	0.107	0.817	168.0	107.1	0.598	167.6	106.7	0.731	44.1	16.6
BMG07082017_slice_18	0.813	0.176	0.112	0.813	175.7	112.1	0.585	175.3	111.6	0.732	43.7	16.4
BMG07082017_slice_19	0.820	0.170	0.108	0.820	169.6	108.3	0.596	169.2	107.8	0.737	42.5	15.7
BMG07082017_slice_20	0.821	0.170	0.107	0.821	170.0	107.2	0.600	169.7	106.7	0.742	42.5	15.5
BMG07082017_slice_21	0.827	0.162	0.102	0.827	162.0	102.1	0.613	161.7	101.7	0.747	41.4	14.9
BMG07082017_slice_22	0.823	0.176	0.111	0.823	176.0	111.1	0.598	175.7	110.6	0.746	41.1	14.7
BMG07082017_slice_23	0.829	0.171	0.109	0.829	171.4	108.5	0.613	171.0	108.1	0.753	39.9	14.1
BMG07082017_slice_24	0.826	0.174	0.110	0.826	173.9	110.5	0.606	173.5	110.0	0.753	40.0	14.0
BMG07082017_slice_25	0.821	0.179	0.113	0.821	178.6	113.1	0.591	178.2	112.6	0.756	40.0	14.0
BMG07082017_slice_26	0.811	0.188	0.119	0.811	188.0	118.6	0.575	187.6	118.2	0.751	41.7	14.6
BMG07082017_slice_27	0.814	0.186	0.117	0.814	185.8	117.3	0.580	185.4	116.8	0.756	41.3	14.2
BMG07082017_slice_28	0.817	0.185	0.117	0.817	185.1	116.8	0.584	184.8	116.3	0.760	41.1	14.1
BMG07082017_slice_29	0.819	0.180	0.114	0.819	180.4	114.2	0.591	180.1	113.8	0.760	41.0	14.0
BMG07082017_slice_30	0.818	0.180	0.114	0.818	179.9	114.1	0.588	179.5	113.6	0.763	41.0	13.9
BMG07082017_slice_31	0.815	0.186	0.118	0.815	186.5	118.0	0.580	186.1	117.6	0.763	41.0	14.0
BMG07082017_slice_32	0.816	0.185	0.117	0.816	185.0	117.4	0.580	184.6	117.0	0.762	40.6	13.8
BMG07082017_slice_33	0.818	0.184	0.117	0.818	183.6	116.7	0.583	183.2	116.3	0.766	40.2	13.6
BMG07082017_slice_34	0.820	0.183	0.117	0.820	182.9	116.6	0.583	182.5	116.2	0.768	40.5	13.6
BMG07082017_slice_35	0.818	0.183	0.117	0.818	183.4	116.8	0.581	183.1	116.4	0.771	40.2	13.5
BMG07082017_slice_36	0.813	0.186	0.118	0.813	186.2	118.5	0.574	185.8	118.0	0.770	40.9	13.8
BMG07082017_slice_37	0.812	0.186	0.118	0.812	185.6	118.5	0.570	185.3	118.0	0.768	41.2	14.0
BMG07082017_slice_38	0.811	0.182	0.117	0.811	181.7	116.6	0.575	181.3	116.2	0.769	41.1	14.0
BMG07082017_slice_39	0.806	0.188	0.120	0.806	187.8	120.1	0.570	187.4	119.7	0.765	41.4	14.2
BMG07082017_slice_40	0.805	0.189	0.120	0.805	188.7	120.5	0.570	188.5	120.1	0.764	40.8	14.0
BMG07082017_slice_41	0.807	0.185	0.118	0.807	185.3	118.4	0.570	185.1	118.0	0.764	40.8	14.0
BMG07082017_slice_42	0.801	0.190	0.121	0.801	189.7	120.9	0.562	189.4	120.5	0.760	41.9	14.4
BMG07082017_slice_43	0.804	0.188	0.120	0.804	188.2	120.2	0.563	187.9	119.8	0.764	41.6	14.3
BMG07082017_slice_44	0.810	0.179	0.115	0.810	179.1	114.8	0.580	178.7	114.4	0.766	43.8	14.7
BMG07082017_slice_45	0.809	0.188	0.119	0.809	187.9	119.0	0.576	187.5	118.6	0.768	41.6	14.2
BMG07082017_slice_46	0.811	0.182	0.116	0.811	182.0	116.3	0.577	181.7	115.9	0.770	41.7	14.1
BMG07082017_slice_47	0.811	0.175	0.112	0.811	174.7	111.8	0.587	174.3	111.4	0.764	42.2	14.2
BMG07082017_slice_48	0.808	0.179	0.114	0.808	179.4	114.3	0.575	178.9	113.9	0.767	41.9	14.0
BMG07082017_slice_49	0.809	0.185	0.118	0.809	185.0	118.2	0.569	184.7	117.7	0.769	42.8	14.5
BMG07082017_slice_50	0.810	0.183	0.117	0.810	183.0	117.1	0.571	182.6	116.6	0.767	42.9	14.7
BMG07082017_slice_51	0.807	0.178	0.115	0.807	178.0	115.1	0.572	177.5	114.5	0.761	43.5	15.2
BMG07082017_slice_52	0.805	0.186	0.119	0.805	186.2	119.5	0.562	185.7	119.0	0.770	41.4	14.0
BMG07082017_slice_53	0.808	0.181	0.116	0.808	181.1	115.9	0.572	180.7	115.4	0.768	41.5	14.1
BMG07082017_slice_54	0.812	0.176	0.112	0.812	176.0	112.5	0.581	175.5	111.9	0.768	41.2	14.0
BMG07082017_slice_55	0.807	0.175	0.112	0.807	174.8	112.1	0.576	174.4	111.6	0.768	41.1	14.1
BMG07082017_slice_56	0.806	0.178	0.114	0.806	178.3	114.1	0.572	177.8	113.5	0.767	41.4	14.2
BMG07082017_slice_57	0.805	0.182	0.116	0.805	182.2	115.9	0.571	181.6	115.4	0.763	43.1	14.8
BMG07082017_slice_58	0.798	0.188	0.118	0.798	187.8	118.4	0.559	187.2	117.9	0.760	44.4	15.3
BMG07082017_slice_59	0.796	0.190	0.120	0.796	189.6	120.1	0.556	189.0	119.6	0.760	43.9	15.1
BMG07082017_slice_60	0.791	0.193	0.123	0.791	193.2	122.7	0.547	192.6	122.2	0.760	44.1	15.3
BMG07082017_slice_61	0.794	0.189	0.121	0.794	189.3	120.7	0.552	188.8	120.2	0.758	44.2	15.5
BMG07082017_slice_62	0.799	0.181	0.117	0.799	181.3	116.6	0.563	180.7	116.1	0.762	43.1	15.1
BMG07082017_slice_63	0.801	0.183	0.117	0.801	182.6	117.4	0.562	182.1	117.0	0.762	42.5	14.9
BMG07082017_slice_64	0.804	0.182	0.117	0.804	182.4	116.8	0.566	181.9	116.4	0.764	41.5	14.4
BMG07082017_slice_65	0.809	0.180	0.115	0.809	180.3	115.2	0.574	179.8	114.8	0.766	41.2	14.2
BMG07082017_slice_66	0.814	0.178	0.114	0.814	178.4	113.7	0.579	178.0	113.2	0.768	40.8	13.9
BMG07082017_slice_67	0.813	0.181	0.115	0.813	181.1	115.0	0.574	180.7	114.5	0.768	40.8	13.9
BMG07082017_slice_68	0.818	0.175	0.112	0.818	175.2	111.9	0.586	174.7	111.3	0.773	40.3	13.6
BMG07082017_slice_69	0.817	0.174	0.111	0.817	174.3	111.2	0.585	173.7	110.7	0.772	40.1	13.5
BMG07082017_slice_70	0.817	0.175	0.112	0.817	175.4	111.8	0.584	174.9	111.2	0.771	40.0	13.7
BMG07082017_slice_71	0.817	0.175	0.112	0.817	175.3	111.9	0.582	174.9	111.4	0.771	39.8	13.7
BMG07082017_slice_72	0.820	0.173	0.111	0.820	173.0	110.7	0.590	172.5	110.2	0.772	39.5	13.5
BMG07082017_slice_73	0.821	0.171	0.110	0.821	170.7	109.6	0.593	170.3	109.1	0.775	39.5	13.5
BMG07082017_slice_74	0.825	0.164	0.107	0.825	164.4	106.6	0.602	163.9	106.0	0.778	39.4	13.5
BMG07082017_slice_75	0.825	0.161	0.104	0.825	161.2	104.3	0.608	160.7	103.7	0.781	39.6	13.4
BMG07082017_slice_76	0.828	0.152	0.098	0.828	152.1	97.9	0.623	151.6	97.3	0.786	39.4	13.3
BMG07082017_slice_77	0.817	0.159	0.101	0.817	158.7	100.8	0.615	158.2	100.2	0.777	42.6	14.7
BMG07082017_slice_78	0.812	0.165	0.107	0.812	165.3	107.1	0.602	164.7	106.4	0.774	44.3	15.4
BMG07082017_slice_79	0.820	0.163	0.105	0.820	162.7	105.1	0.612	162.1	104.3	0.779	42.4	14.4
BMG07082017_slice_80	0.825	0.159	0.102	0.825	159.1	102.0	0.623	158.6	101.4	0.775	41.7	14.2
BMG07082017_slice_81	0.833	0.151	0.091	0.833	150.6	91.3	0.645	150.3	90.8	0.767	42.3	14.4
BMG07082017_slice_82	0.815	0.179	0.114	0.815	179.3	114.1	0.595	178.9	113.6	0.747	45.5	16.1
BMG07082017_slice_83	0.812	0.182	0.116	0.812	181.9	115.7	0.588	181.5	115.2	0.736	46.1	16.8
BMG07082017_slice_84	0.803	0.187	0.118	0.803	186.9	118.4	0.577	186.6	118.0	0.725	47.1	17.7
BMG07082017_slice_85	0.793	0.194	0.123	0.793	193.6	123.4	0.563	193.3	123.0	0.716	48.6	18.9
BMG07082017_slice_86	0.797	0.181	0.116	0.797	181.1	115.8	0.573	180.8	115.4	0.710	48.3	19.1
BMG07082017_slice_87	0.779	0.182	0.118	0.779	182.5	118.0	0.553	182.3	117.7	0.698	50.6	20.9
BMG07082017_slice_88	0.757	0.187	0.122	0.757	186.9	121.7	0.533	186.7	121.4	0.689	52.5	22.6
BMG07082017_slice_89	0.746	0.184	0.121	0.746	184.5	120.6	0.525	184.3	120.3	0.685	53.7	23.6
BMG07082017_slice_90	0.714	0.193	0.127	0.714	193.0	126.8	0.497	192.8	126.6	0.677	57.3	26.0
BMG07082017_slice_91	0.710	0.192	0.127	0.710	192.3	126.7	0.493	192.1	126.5	0.672	58.3	26.7
BMG07082017_slice_92	0.698	0.195	0.130	0.698	195.5	129.5	0.486	195.3	129.3	0.671	59.9	27.7
BMG07082017_slice_93	0.703	0.192	0.127	0.703	192.4	127.4	0.491	192.1	127.1	0.671	59.7	27.6
BMG07082017_slice_94	0.704	0.194	0.129	0.704	193.8	129.0	0.490	193.5	128.7	0.670	59.0	27.3
BMG07082017_slice_95	0.703	0.191	0.127	0.703	191.0	127.2	0.488	190.7	126.9	0.669	59.0	27.4
BMG07082017_slice_96	0.705	0.191	0.127	0.705	191.1	127.3	0.489	190.6	126.9	0.671	59.3	27.2
BMG07082017_slice_97	0.726	0.188	0.126	0.726	188.5	125.7	0.502	188.0	125.3	0.675	57.0	25.7
BMG07082017_slice_98	0.775	0.168	0.109	0.775	168.1	109.3	0.543	167.4	108.8	0.683	51.0	22.2
BMG07082017_slice_99	0.767	0.177	0.115	0.767	176.8	114.8	0.537	176.0	114.3	0.681	51.5	22.6
BMG07082017_slice_100	0.750	0.184	0.121	0.750	184.4	121.0	0.519	183.5	120.6	0.679	53.3	23.5
BMG07082017_slice_101	0.747	0.183	0.120	0.747	183.4	120.0	0.518	182.6	119.6	0.679	53.9	23.9
BMG07082017_slice_102	0.744	0.188	0.124	0.744	187.7	123.8	0.514	187.0	123.4	0.679	54.3	24.1
