GAN Evaluation Report - Patient BC23122020

Native→Venous Translation Metrics (Generated Venous vs Real Venous)

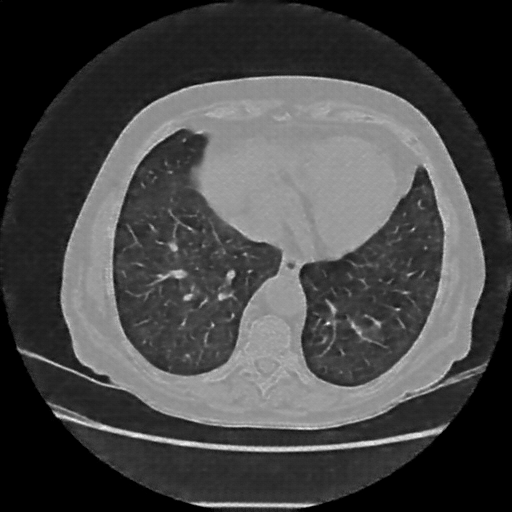

Targeted Slice 70 - Network-Normalized Analysis (Generated vs Real Venous)

0.727

SSIM Score

0.182

RMSE

0.102

MAE

Average Network-Normalized Metrics Across All Slices (107 slices) - Generated vs Real Venous

0.767

SSIM Score (Avg)

0.161

RMSE (Avg)

0.106

MAE (Avg)

Targeted Slice 70 - HU-Space Analysis (Generated vs Real Venous)

0.736

HU SSIM

179.5

HU RMSE

91.4

HU MAE

Average HU-Space Metrics Across All Slices (107 slices) - Generated vs Real Venous

0.773

HU SSIM (Avg)

149.1

HU RMSE (Avg)

81.0

HU MAE (Avg)

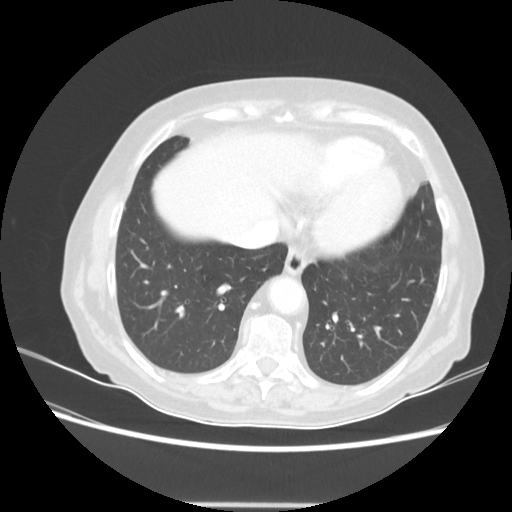

Targeted Slice 70 - Lung Window Analysis (Generated vs Real Venous)

0.521

Lung SSIM

175.6

Lung RMSE

95.4

Lung MAE

Average Lung Window Metrics Across All Slices (107 slices) - Generated vs Real Venous

0.560

Lung SSIM (Avg)

157.5

Lung RMSE (Avg)

102.4

Lung MAE (Avg)

Targeted Slice 70 - Mediastinum Window Analysis (Generated vs Real Venous)

0.650

Mediastinum SSIM

66.8

Mediastinum RMSE

27.5

Mediastinum MAE

Average Mediastinum Window Metrics Across All Slices (107 slices) - Generated vs Real Venous

0.625

Mediastinum SSIM (Avg)

59.2

Mediastinum RMSE (Avg)

26.3

Mediastinum MAE (Avg)

Detailed Per-Slice Metrics

Slice ID	SSIM	RMSE	MAE	HU SSIM	HU RMSE	HU MAE	Lung SSIM	Lung RMSE	Lung MAE	Mediastinum SSIM	Mediastinum RMSE	Mediastinum MAE
BC23122020_slice_0	0.806	0.122	0.095	0.812	103.2	66.6	0.606	118.1	90.6	0.634	51.1	24.1
BC23122020_slice_1	0.800	0.124	0.099	0.805	103.8	69.0	0.600	120.5	94.6	0.629	52.2	24.7
BC23122020_slice_2	0.807	0.128	0.103	0.812	103.7	70.2	0.613	124.3	98.9	0.630	51.8	24.5
BC23122020_slice_3	0.817	0.133	0.108	0.822	108.5	74.0	0.624	128.9	103.5	0.635	51.6	23.9
BC23122020_slice_4	0.819	0.127	0.102	0.823	105.0	70.3	0.624	123.7	98.2	0.637	50.3	23.1
BC23122020_slice_5	0.815	0.128	0.102	0.819	105.1	70.0	0.623	124.6	98.6	0.636	50.3	23.0
BC23122020_slice_6	0.816	0.122	0.095	0.821	102.6	66.5	0.622	117.8	91.3	0.645	49.9	22.6
BC23122020_slice_7	0.814	0.123	0.096	0.819	103.2	66.6	0.620	119.0	92.1	0.645	50.7	22.8
BC23122020_slice_8	0.808	0.123	0.096	0.813	104.6	67.0	0.612	119.5	92.0	0.644	51.5	23.1
BC23122020_slice_9	0.805	0.121	0.093	0.810	105.4	66.6	0.604	117.3	89.0	0.644	51.8	23.2
BC23122020_slice_10	0.803	0.123	0.093	0.808	107.1	67.3	0.601	119.0	89.9	0.645	52.2	23.2
BC23122020_slice_11	0.808	0.123	0.094	0.813	106.6	66.9	0.605	119.7	90.6	0.646	51.3	22.7
BC23122020_slice_12	0.818	0.130	0.101	0.823	110.0	70.3	0.617	126.9	97.8	0.650	50.0	21.8
BC23122020_slice_13	0.813	0.129	0.099	0.817	110.8	69.6	0.614	126.2	95.8	0.653	51.0	22.1
BC23122020_slice_14	0.812	0.130	0.098	0.817	112.7	70.0	0.610	126.5	95.0	0.653	51.5	22.3
BC23122020_slice_15	0.814	0.134	0.102	0.819	116.1	71.9	0.613	130.9	98.5	0.655	50.7	21.9
BC23122020_slice_16	0.812	0.131	0.096	0.817	115.5	70.0	0.606	127.2	93.3	0.655	50.7	21.9
BC23122020_slice_17	0.807	0.127	0.092	0.813	114.8	68.6	0.598	123.2	88.4	0.653	51.7	22.3
BC23122020_slice_18	0.810	0.134	0.100	0.814	118.5	72.5	0.606	131.1	97.2	0.656	52.0	22.2
BC23122020_slice_19	0.810	0.132	0.096	0.816	118.4	70.7	0.605	128.9	93.2	0.657	51.5	21.9
BC23122020_slice_20	0.812	0.126	0.088	0.818	116.1	67.3	0.601	122.6	85.1	0.662	50.8	21.5
BC23122020_slice_21	0.810	0.129	0.090	0.816	118.2	68.2	0.599	125.5	87.2	0.659	50.9	21.5
BC23122020_slice_22	0.812	0.130	0.091	0.818	117.8	67.7	0.600	126.2	87.8	0.662	50.4	21.2
BC23122020_slice_23	0.816	0.133	0.095	0.821	118.8	69.4	0.607	129.7	92.3	0.666	49.5	20.9
BC23122020_slice_24	0.815	0.133	0.096	0.820	118.5	69.4	0.605	130.1	93.0	0.668	49.6	20.8
BC23122020_slice_25	0.815	0.140	0.104	0.819	121.7	73.4	0.613	137.0	101.2	0.668	49.8	21.0
BC23122020_slice_26	0.809	0.138	0.101	0.814	121.9	72.4	0.600	134.7	97.8	0.664	50.6	21.2
BC23122020_slice_27	0.803	0.135	0.094	0.809	122.6	69.9	0.589	131.3	91.0	0.657	50.5	21.3
BC23122020_slice_28	0.799	0.134	0.092	0.805	124.0	69.8	0.584	130.6	88.6	0.656	51.2	21.3
BC23122020_slice_29	0.796	0.136	0.092	0.803	127.1	70.8	0.581	132.9	88.5	0.656	51.2	21.3
BC23122020_slice_30	0.791	0.142	0.095	0.797	132.5	72.9	0.577	139.3	92.2	0.654	52.4	21.7
BC23122020_slice_31	0.782	0.147	0.097	0.788	137.5	74.7	0.567	143.9	93.9	0.648	54.5	22.8
BC23122020_slice_32	0.787	0.152	0.104	0.793	140.3	78.6	0.577	149.3	101.2	0.651	55.3	23.1
BC23122020_slice_33	0.783	0.153	0.105	0.789	140.3	78.3	0.574	150.4	102.3	0.650	55.9	23.5
BC23122020_slice_34	0.787	0.161	0.116	0.792	144.2	84.1	0.585	158.5	113.5	0.654	55.8	23.6
BC23122020_slice_35	0.783	0.159	0.107	0.789	146.0	80.2	0.574	155.4	104.4	0.650	56.4	23.8
BC23122020_slice_36	0.778	0.158	0.101	0.785	148.4	78.5	0.565	154.5	98.5	0.646	57.3	24.3
BC23122020_slice_37	0.769	0.160	0.103	0.775	150.3	80.2	0.553	156.3	100.0	0.644	58.5	24.9
BC23122020_slice_38	0.756	0.160	0.099	0.764	152.2	79.1	0.541	156.7	96.4	0.639	59.7	25.8
BC23122020_slice_39	0.755	0.158	0.099	0.762	150.6	78.4	0.541	155.4	96.0	0.636	59.7	25.9
BC23122020_slice_40	0.760	0.160	0.104	0.767	149.2	79.8	0.550	156.8	101.5	0.638	58.5	25.3
BC23122020_slice_41	0.759	0.162	0.106	0.766	151.5	81.1	0.550	159.5	103.5	0.636	59.0	25.7
BC23122020_slice_42	0.763	0.164	0.110	0.769	152.4	83.2	0.553	161.8	107.1	0.637	58.1	25.4
BC23122020_slice_43	0.759	0.162	0.104	0.766	153.5	81.7	0.543	159.6	101.6	0.638	58.9	25.7
BC23122020_slice_44	0.766	0.163	0.104	0.772	153.6	80.6	0.551	160.2	101.2	0.641	58.4	25.3
BC23122020_slice_45	0.761	0.165	0.110	0.767	152.9	83.3	0.551	162.4	107.7	0.638	59.0	25.8
BC23122020_slice_46	0.757	0.165	0.113	0.763	151.7	84.3	0.550	162.6	110.5	0.636	59.0	26.1
BC23122020_slice_47	0.754	0.167	0.114	0.760	152.7	83.9	0.548	164.7	111.3	0.634	59.0	26.3
BC23122020_slice_48	0.751	0.166	0.112	0.757	153.0	83.4	0.547	163.4	108.6	0.635	60.0	26.9
BC23122020_slice_49	0.750	0.173	0.116	0.755	159.3	86.1	0.550	170.4	113.0	0.635	61.4	27.5
BC23122020_slice_50	0.750	0.174	0.117	0.755	160.7	86.8	0.554	172.3	114.3	0.634	61.7	27.7
BC23122020_slice_51	0.759	0.173	0.116	0.765	160.2	87.6	0.558	170.5	113.6	0.634	60.8	27.0
BC23122020_slice_52	0.761	0.172	0.114	0.767	160.5	86.8	0.561	169.8	111.5	0.640	60.6	26.6
BC23122020_slice_53	0.762	0.169	0.113	0.768	157.7	86.1	0.559	166.7	110.7	0.635	61.1	26.7
BC23122020_slice_54	0.761	0.165	0.110	0.766	155.0	85.3	0.554	162.0	106.9	0.633	59.9	26.3
BC23122020_slice_55	0.757	0.165	0.109	0.763	155.1	84.6	0.550	161.5	105.7	0.629	60.2	26.6
BC23122020_slice_56	0.758	0.166	0.109	0.764	157.6	85.5	0.547	162.8	105.1	0.629	60.6	26.7
BC23122020_slice_57	0.754	0.169	0.112	0.759	159.1	87.4	0.546	165.5	109.0	0.626	62.2	27.2
BC23122020_slice_58	0.752	0.165	0.099	0.760	160.5	83.8	0.534	160.8	95.3	0.644	59.7	25.5
BC23122020_slice_59	0.755	0.160	0.090	0.764	157.5	78.7	0.540	155.7	84.6	0.653	59.4	25.1
BC23122020_slice_60	0.754	0.162	0.090	0.764	159.3	79.2	0.537	156.8	84.0	0.655	59.3	24.9
BC23122020_slice_61	0.754	0.163	0.091	0.763	159.9	80.6	0.539	156.9	85.1	0.661	58.7	24.4
BC23122020_slice_62	0.746	0.166	0.089	0.757	163.3	80.0	0.542	159.1	81.5	0.661	59.2	24.4
BC23122020_slice_63	0.751	0.165	0.088	0.763	162.4	78.7	0.551	158.4	79.4	0.665	57.6	23.4
BC23122020_slice_64	0.757	0.166	0.092	0.767	162.9	82.2	0.545	159.4	85.6	0.668	56.3	22.8
BC23122020_slice_65	0.751	0.169	0.093	0.761	166.5	83.2	0.546	162.7	84.9	0.668	56.6	23.1
BC23122020_slice_66	0.743	0.177	0.094	0.756	174.2	83.8	0.555	169.9	83.2	0.661	59.5	24.3
BC23122020_slice_67	0.730	0.187	0.099	0.745	182.8	86.3	0.555	177.9	84.2	0.655	63.0	25.7
BC23122020_slice_68	0.724	0.188	0.099	0.738	184.7	88.0	0.550	179.7	86.2	0.654	66.3	27.0
BC23122020_slice_69	0.713	0.186	0.105	0.722	183.9	94.3	0.511	179.7	97.5	0.645	67.8	28.4
BC23122020_slice_70	0.727	0.182	0.102	0.736	179.5	91.4	0.521	175.6	95.4	0.650	66.8	27.5
BC23122020_slice_71	0.734	0.183	0.106	0.742	179.9	92.8	0.526	177.6	100.3	0.653	65.9	27.1
BC23122020_slice_72	0.722	0.188	0.111	0.729	184.8	97.2	0.516	183.1	106.0	0.644	67.3	28.6
BC23122020_slice_73	0.738	0.191	0.112	0.745	186.9	96.2	0.529	185.6	107.0	0.643	66.0	27.3
BC23122020_slice_74	0.748	0.194	0.112	0.755	190.1	95.5	0.534	189.5	107.8	0.637	65.8	27.0
BC23122020_slice_75	0.752	0.195	0.108	0.760	191.0	92.5	0.535	190.4	103.6	0.629	65.4	26.8
BC23122020_slice_76	0.753	0.195	0.108	0.760	191.2	92.0	0.534	191.0	104.2	0.620	66.4	27.3
BC23122020_slice_77	0.758	0.198	0.113	0.763	191.7	92.9	0.542	193.8	109.6	0.611	67.1	27.8
BC23122020_slice_78	0.755	0.200	0.113	0.761	194.5	92.9	0.537	197.5	110.6	0.603	67.5	28.4
BC23122020_slice_79	0.753	0.201	0.114	0.759	195.7	94.0	0.531	198.3	111.2	0.598	68.0	28.8
BC23122020_slice_80	0.758	0.201	0.116	0.764	194.5	94.0	0.538	198.3	113.1	0.594	68.6	29.3
BC23122020_slice_81	0.754	0.201	0.116	0.760	193.7	93.9	0.533	198.0	113.9	0.585	69.2	30.2
BC23122020_slice_82	0.757	0.200	0.118	0.763	191.4	93.5	0.537	197.3	116.1	0.582	68.7	30.3
BC23122020_slice_83	0.751	0.200	0.122	0.755	190.3	94.6	0.536	198.1	120.1	0.576	69.1	31.2
BC23122020_slice_84	0.746	0.199	0.122	0.750	188.6	94.1	0.534	196.8	120.0	0.572	69.2	31.7
BC23122020_slice_85	0.752	0.197	0.123	0.757	186.2	93.8	0.538	195.2	120.8	0.570	67.9	31.3
BC23122020_slice_86	0.744	0.194	0.120	0.748	183.4	92.2	0.529	191.6	117.9	0.567	67.8	31.8
BC23122020_slice_87	0.741	0.192	0.122	0.746	179.2	92.1	0.530	189.5	120.5	0.564	67.4	31.9
BC23122020_slice_88	0.742	0.190	0.123	0.747	176.7	91.5	0.531	187.8	120.7	0.562	66.2	31.6
BC23122020_slice_89	0.744	0.188	0.123	0.748	173.7	90.5	0.531	185.8	120.6	0.559	65.7	31.4
BC23122020_slice_90	0.751	0.187	0.125	0.755	170.9	90.3	0.544	185.1	122.9	0.561	65.3	31.2
BC23122020_slice_91	0.747	0.183	0.121	0.751	167.1	87.9	0.537	180.2	119.2	0.559	65.3	31.5
BC23122020_slice_92	0.749	0.180	0.120	0.753	163.5	87.0	0.539	177.2	118.3	0.562	64.7	31.3
BC23122020_slice_93	0.728	0.175	0.116	0.733	160.8	85.7	0.520	172.6	114.4	0.553	66.8	33.1
BC23122020_slice_94	0.730	0.174	0.119	0.735	158.4	85.9	0.528	172.0	116.6	0.555	66.4	32.8
BC23122020_slice_95	0.719	0.171	0.117	0.724	156.1	85.4	0.518	168.9	114.8	0.553	68.4	34.1
BC23122020_slice_96	0.714	0.170	0.117	0.719	154.7	85.3	0.513	167.4	114.7	0.553	68.4	34.4
BC23122020_slice_97	0.714	0.169	0.117	0.718	153.1	84.8	0.515	166.6	114.9	0.554	67.5	34.1
BC23122020_slice_98	0.721	0.167	0.116	0.726	150.7	84.1	0.520	164.2	114.1	0.556	66.5	33.4
BC23122020_slice_99	0.724	0.166	0.116	0.728	148.5	83.6	0.519	162.9	114.3	0.553	65.3	33.0
BC23122020_slice_100	0.737	0.165	0.115	0.741	147.5	82.5	0.529	161.8	113.3	0.557	64.0	31.8
BC23122020_slice_101	0.744	0.167	0.119	0.748	147.3	84.1	0.538	164.3	117.4	0.561	63.0	31.1
BC23122020_slice_102	0.746	0.164	0.118	0.750	144.5	83.1	0.539	161.7	116.1	0.568	62.5	30.8
BC23122020_slice_103	0.743	0.156	0.110	0.747	139.3	79.3	0.531	152.9	108.0	0.569	62.1	30.7
BC23122020_slice_104	0.754	0.159	0.115	0.757	138.6	79.9	0.547	155.9	112.6	0.575	60.7	29.7
BC23122020_slice_105	0.758	0.153	0.108	0.762	135.2	76.4	0.545	148.9	105.4	0.574	60.0	29.3
BC23122020_slice_106	0.766	0.151	0.106	0.770	133.5	75.1	0.552	146.6	103.4	0.577	59.2	28.6
