GAN Medical CT Evaluation Report

Patient: PM03022021

Slice 70 Targeting Evaluation

Patient Information

Patient ID: PM03022021

Model: cytran

Slice: Slice_70

Slice Thickness: 2.5mm

Conversion: NATIVE → VENOUS

📊 Download Metrics

📥 Download CSV Metrics (patient_PM03022021_metrics.csv)

Contains all 4 metric datasets: Network-Normalized, Hounsfield Units, Lung Window, and Mediastinum Window

Native→Venous Translation Metrics (Generated Venous vs Real Venous)

Targeted Slice 70 - Network-Normalized Analysis (Generated vs Real Venous)

0.293
SSIM Score
0.530
RMSE
0.502
MAE

Average Network-Normalized Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.298
SSIM Score (Avg)
0.536
RMSE (Avg)
0.509
MAE (Avg)

Targeted Slice 70 - HU-Space Analysis (Generated vs Real Venous)

0.293
HU SSIM
530.3
HU RMSE
502.5
HU MAE

Average HU-Space Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.298
HU SSIM (Avg)
535.6
HU RMSE (Avg)
508.7
HU MAE (Avg)

Targeted Slice 70 - Lung Window Analysis (Generated vs Real Venous)

0.277
Lung SSIM
529.0
Lung RMSE
497.8
Lung MAE

Average Lung Window Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.280
Lung SSIM (Avg)
534.4
Lung RMSE (Avg)
504.0
Lung MAE (Avg)

Targeted Slice 70 - Mediastinum Window Analysis (Generated vs Real Venous)

0.698
Mediastinum SSIM
82.0
Mediastinum RMSE
35.5
Mediastinum MAE

Average Mediastinum Window Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.699
Mediastinum SSIM (Avg)
75.4
Mediastinum RMSE (Avg)
33.1
Mediastinum MAE (Avg)

Image Grid

4×3 grid: Rows show different image types (Original NATIVE, Reconstructed NATIVE, Original VENOUS, Generated VENOUS), Columns show windowing techniques (No Window, Lung Window, Mediastinum Window)

Original NATIVE CT scan (input)
Full window (WL 1023.5, WW 4095 → Low −1024, High +3071)
Original NATIVE CT scan (input)
Actual HU range: [-160.0, 240.0]

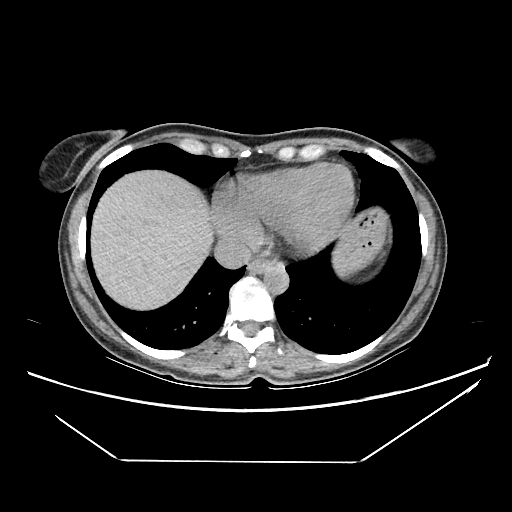

Original NATIVE CT scan (input)
Lung window (WL -600, WW 1500 → Low −1350, High +150)
Original NATIVE CT scan (input)
Actual HU range: [-160.0, 150.0]
Original NATIVE CT scan (input)
Mediastinum window (WL 40, WW 400 → Low −160, High +240)
Original NATIVE CT scan (input)
Actual HU range: [-160.0, 240.0]

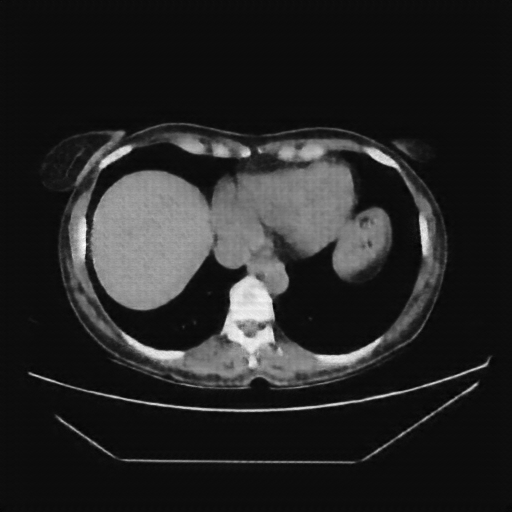

Reconstructed NATIVE CT scan (cycle consistency)
Full window (WL 1023.5, WW 4095 → Low −1024, High +3071)
Reconstructed NATIVE CT scan (cycle consistency)
Actual HU range: [-832.9, 629.2]
Reconstructed NATIVE CT scan (cycle consistency)
Lung window (WL -600, WW 1500 → Low −1350, High +150)
Reconstructed NATIVE CT scan (cycle consistency)
Actual HU range: [-832.9, 150.0]
Reconstructed NATIVE CT scan (cycle consistency)
Mediastinum window (WL 40, WW 400 → Low −160, High +240)
Reconstructed NATIVE CT scan (cycle consistency)
Actual HU range: [-160.0, 240.0]
Original VENOUS CT scan
Full window (WL 1023.5, WW 4095 → Low −1024, High +3071)
Original VENOUS CT scan
Actual HU range: [-160.0, 240.0]

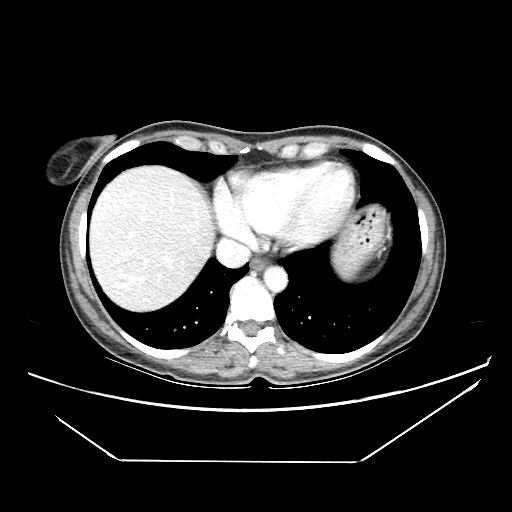

Original VENOUS CT scan
Lung window (WL -600, WW 1500 → Low −1350, High +150)
Original VENOUS CT scan
Actual HU range: [-160.0, 150.0]

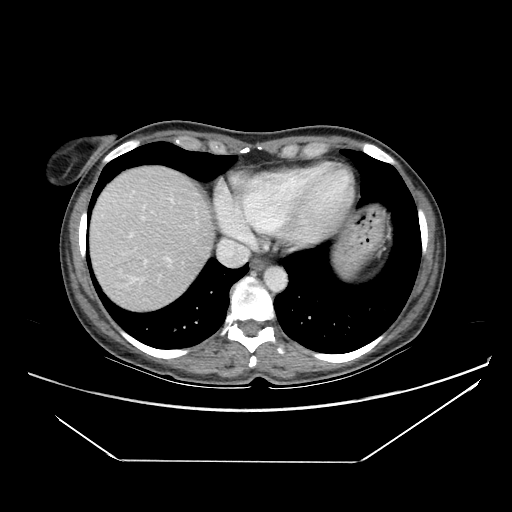

Original VENOUS CT scan
Mediastinum window (WL 40, WW 400 → Low −160, High +240)
Original VENOUS CT scan
Actual HU range: [-160.0, 240.0]
Generated VENOUS CT scan (A→B translation)
Full window (WL 1023.5, WW 4095 → Low −1024, High +3071)
Generated VENOUS CT scan (A→B translation)
Actual HU range: [-811.5, 753.5]
Generated VENOUS CT scan (A→B translation)
Lung window (WL -600, WW 1500 → Low −1350, High +150)
Generated VENOUS CT scan (A→B translation)
Actual HU range: [-811.5, 150.0]

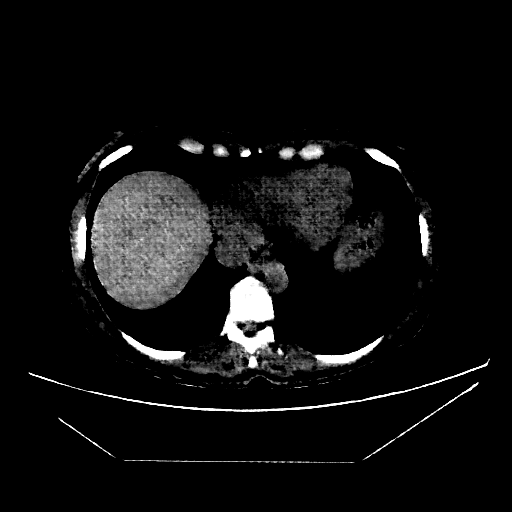

Generated VENOUS CT scan (A→B translation)
Mediastinum window (WL 40, WW 400 → Low −160, High +240)
Generated VENOUS CT scan (A→B translation)
Actual HU range: [-160.0, 240.0]

Windowing Parameters
