GAN Evaluation Report - Patient PM03022021

Native→Venous Translation Metrics (Generated Venous vs Real Venous)

Targeted Slice 70 - Network-Normalized Analysis (Generated vs Real Venous)

0.923

SSIM Score

0.039

RMSE

0.017

MAE

Average Network-Normalized Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.929

SSIM Score (Avg)

0.037

RMSE (Avg)

0.016

MAE (Avg)

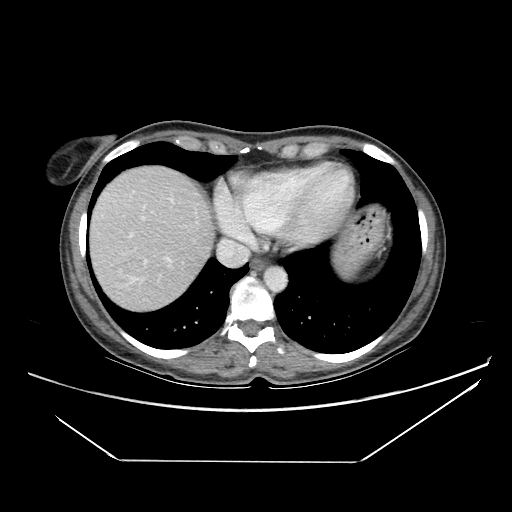

Targeted Slice 70 - HU-Space Analysis (Generated vs Real Venous)

0.923

HU SSIM

39.3

HU RMSE

17.1

HU MAE

Average HU-Space Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.929

HU SSIM (Avg)

37.0

HU RMSE (Avg)

16.1

HU MAE (Avg)

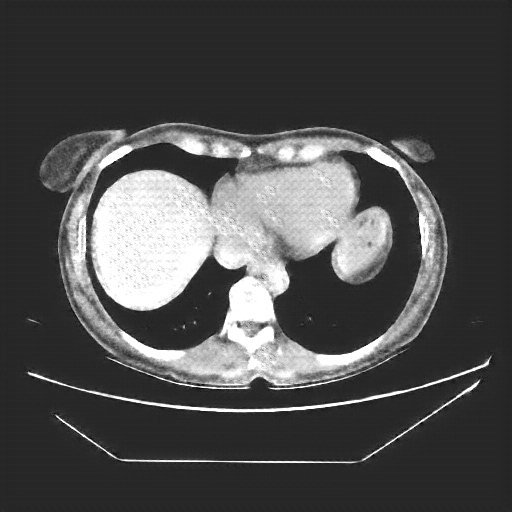

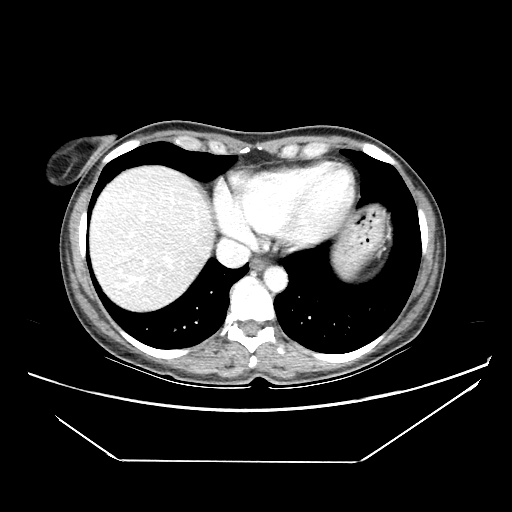

Targeted Slice 70 - Lung Window Analysis (Generated vs Real Venous)

0.867

Lung SSIM

35.3

Lung RMSE

14.9

Lung MAE

Average Lung Window Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.870

Lung SSIM (Avg)

33.0

Lung RMSE (Avg)

14.0

Lung MAE (Avg)

Targeted Slice 70 - Mediastinum Window Analysis (Generated vs Real Venous)

0.754

Mediastinum SSIM

39.0

Mediastinum RMSE

16.7

Mediastinum MAE

Average Mediastinum Window Metrics Across All Slices (95 slices) - Generated vs Real Venous

0.763

Mediastinum SSIM (Avg)

36.6

Mediastinum RMSE (Avg)

15.3

Mediastinum MAE (Avg)

Detailed Per-Slice Metrics

Slice ID	SSIM	RMSE	MAE	HU SSIM	HU RMSE	HU MAE	Lung SSIM	Lung RMSE	Lung MAE	Mediastinum SSIM	Mediastinum RMSE	Mediastinum MAE
PM03022021_slice_0	0.925	0.037	0.017	0.925	36.7	16.9	0.857	32.0	14.6	0.755	36.4	16.6
PM03022021_slice_1	0.925	0.037	0.017	0.925	36.8	16.6	0.857	32.1	14.4	0.756	36.5	16.2
PM03022021_slice_2	0.921	0.038	0.017	0.921	38.3	16.9	0.854	33.2	14.6	0.754	37.9	16.4
PM03022021_slice_3	0.921	0.039	0.017	0.921	39.2	16.8	0.855	33.7	14.5	0.758	38.8	16.1
PM03022021_slice_4	0.926	0.037	0.016	0.926	37.2	16.3	0.858	32.3	14.1	0.763	36.8	15.5
PM03022021_slice_5	0.925	0.037	0.016	0.925	36.9	16.3	0.857	32.3	14.2	0.760	36.4	15.6
PM03022021_slice_6	0.923	0.036	0.016	0.923	36.3	16.5	0.857	32.4	14.5	0.759	35.8	15.9
PM03022021_slice_7	0.926	0.037	0.016	0.926	36.8	16.1	0.864	32.4	13.9	0.770	36.3	14.8
PM03022021_slice_8	0.929	0.037	0.016	0.929	37.3	15.9	0.868	32.4	13.7	0.773	36.7	14.3
PM03022021_slice_9	0.933	0.037	0.016	0.933	36.8	15.7	0.874	31.9	13.5	0.780	36.2	13.7
PM03022021_slice_10	0.931	0.037	0.016	0.931	37.3	15.6	0.873	32.2	13.3	0.776	36.7	14.3
PM03022021_slice_11	0.931	0.038	0.016	0.931	37.8	16.1	0.873	32.4	13.7	0.777	37.1	14.4
PM03022021_slice_12	0.932	0.037	0.016	0.932	36.7	15.5	0.875	31.7	13.3	0.773	36.2	14.8
PM03022021_slice_13	0.930	0.037	0.016	0.930	37.4	15.9	0.871	32.5	13.7	0.770	36.8	15.3
PM03022021_slice_14	0.932	0.037	0.015	0.932	36.5	15.4	0.872	32.2	13.4	0.776	36.1	14.6
PM03022021_slice_15	0.929	0.038	0.016	0.929	37.9	15.8	0.872	33.1	13.6	0.776	37.4	15.0
PM03022021_slice_16	0.930	0.038	0.016	0.930	38.2	15.9	0.874	33.2	13.7	0.779	37.8	14.1
PM03022021_slice_17	0.932	0.038	0.016	0.932	38.0	15.5	0.875	32.8	13.2	0.780	37.4	13.9
PM03022021_slice_18	0.930	0.039	0.016	0.930	38.7	15.7	0.871	33.5	13.3	0.772	38.3	14.5
PM03022021_slice_19	0.929	0.038	0.016	0.929	38.2	15.6	0.869	33.6	13.4	0.767	37.8	14.8
PM03022021_slice_20	0.924	0.040	0.016	0.924	39.9	16.2	0.863	35.1	14.1	0.765	39.4	15.0
PM03022021_slice_21	0.922	0.041	0.016	0.922	40.6	16.4	0.859	35.8	14.3	0.760	40.0	15.3
PM03022021_slice_22	0.919	0.041	0.017	0.919	41.4	16.7	0.856	36.3	14.5	0.755	40.7	15.8
PM03022021_slice_23	0.923	0.040	0.016	0.923	40.2	16.2	0.862	35.1	14.1	0.762	39.6	15.4
PM03022021_slice_24	0.925	0.041	0.017	0.925	40.7	16.8	0.865	35.2	14.5	0.772	40.0	14.6
PM03022021_slice_25	0.928	0.039	0.016	0.928	39.4	16.0	0.871	34.0	13.7	0.775	38.8	14.8
PM03022021_slice_26	0.931	0.038	0.016	0.931	37.8	15.8	0.873	32.8	13.4	0.771	37.4	15.1
PM03022021_slice_27	0.934	0.036	0.015	0.934	36.4	15.5	0.876	31.7	13.1	0.773	36.0	14.8
PM03022021_slice_28	0.932	0.037	0.016	0.932	37.1	16.1	0.875	32.1	13.6	0.766	36.7	15.6
PM03022021_slice_29	0.930	0.037	0.016	0.930	37.4	15.9	0.870	33.0	13.8	0.767	36.9	15.3
PM03022021_slice_30	0.926	0.039	0.016	0.926	38.5	16.4	0.865	34.3	14.3	0.764	38.1	15.7
PM03022021_slice_31	0.921	0.039	0.017	0.921	39.1	17.4	0.859	34.8	15.3	0.755	38.6	16.9
PM03022021_slice_32	0.924	0.038	0.017	0.924	37.7	16.5	0.862	33.4	14.5	0.759	37.1	16.0
PM03022021_slice_33	0.924	0.038	0.016	0.924	38.2	16.3	0.864	33.6	14.0	0.767	37.6	15.3
PM03022021_slice_34	0.927	0.037	0.016	0.927	37.2	15.9	0.865	32.6	13.6	0.767	36.8	15.1
PM03022021_slice_35	0.928	0.037	0.016	0.928	37.0	15.9	0.867	32.3	13.5	0.770	36.5	14.8
PM03022021_slice_36	0.927	0.038	0.016	0.927	37.6	16.1	0.867	33.0	13.7	0.769	37.2	15.3
PM03022021_slice_37	0.924	0.038	0.017	0.924	38.3	16.8	0.863	33.7	14.5	0.759	38.1	16.4
PM03022021_slice_38	0.926	0.038	0.016	0.926	38.4	16.4	0.866	33.8	14.1	0.765	38.0	15.7
PM03022021_slice_39	0.923	0.038	0.017	0.923	38.4	16.6	0.863	34.2	14.5	0.762	38.1	16.0
PM03022021_slice_40	0.920	0.039	0.017	0.920	39.1	17.3	0.860	34.9	15.4	0.759	38.8	16.9
PM03022021_slice_41	0.926	0.038	0.016	0.926	38.0	16.5	0.869	33.8	14.6	0.771	37.5	16.0
PM03022021_slice_42	0.930	0.037	0.016	0.930	36.5	16.0	0.874	32.3	14.0	0.776	36.1	15.5
PM03022021_slice_43	0.932	0.036	0.017	0.932	35.6	16.6	0.876	31.5	14.6	0.772	35.3	16.4
PM03022021_slice_44	0.937	0.035	0.015	0.937	34.5	14.8	0.880	30.4	12.7	0.786	34.1	13.7
PM03022021_slice_45	0.936	0.035	0.015	0.936	34.5	14.9	0.879	30.3	12.7	0.785	34.1	13.4
PM03022021_slice_46	0.936	0.035	0.016	0.936	34.7	15.9	0.879	30.3	13.8	0.772	34.3	15.6
PM03022021_slice_47	0.932	0.036	0.017	0.932	35.7	17.4	0.875	31.6	15.4	0.766	35.3	17.2
PM03022021_slice_48	0.931	0.036	0.017	0.931	36.4	16.7	0.874	32.5	14.7	0.766	36.0	16.4
PM03022021_slice_49	0.931	0.037	0.016	0.931	36.6	15.6	0.875	32.4	13.5	0.772	36.2	15.0
PM03022021_slice_50	0.931	0.037	0.016	0.931	36.9	15.5	0.876	32.7	13.4	0.773	36.5	14.9
PM03022021_slice_51	0.932	0.037	0.016	0.932	37.1	15.8	0.878	32.8	13.6	0.786	36.6	13.8
PM03022021_slice_52	0.935	0.036	0.015	0.935	35.5	15.3	0.881	31.4	13.2	0.776	35.3	14.8
PM03022021_slice_53	0.936	0.035	0.016	0.936	35.3	16.3	0.884	31.2	14.2	0.770	35.0	16.1
PM03022021_slice_54	0.938	0.035	0.015	0.938	34.7	15.4	0.886	30.6	13.3	0.775	34.4	15.1
PM03022021_slice_55	0.941	0.034	0.015	0.941	33.9	14.7	0.893	29.3	12.4	0.780	33.6	14.3
PM03022021_slice_56	0.945	0.034	0.014	0.945	33.6	14.2	0.898	28.7	11.7	0.796	33.2	13.0
PM03022021_slice_57	0.947	0.033	0.014	0.947	33.0	13.9	0.901	28.1	11.5	0.797	32.6	13.2
PM03022021_slice_58	0.947	0.033	0.014	0.947	33.0	14.1	0.900	28.3	11.9	0.791	32.6	13.7
PM03022021_slice_59	0.945	0.033	0.014	0.945	33.2	14.5	0.898	28.7	12.2	0.788	32.9	14.1
PM03022021_slice_60	0.933	0.038	0.016	0.933	38.2	15.8	0.884	34.2	13.5	0.778	37.8	15.3
PM03022021_slice_61	0.928	0.040	0.017	0.928	40.3	16.7	0.879	36.7	14.6	0.770	40.0	16.3
PM03022021_slice_62	0.931	0.039	0.016	0.931	38.9	16.2	0.880	35.2	14.0	0.769	38.6	15.7
PM03022021_slice_63	0.931	0.039	0.016	0.931	38.7	16.1	0.881	34.9	13.9	0.779	38.4	14.7
PM03022021_slice_64	0.930	0.038	0.017	0.930	38.1	16.7	0.878	34.6	14.5	0.762	37.9	16.4
PM03022021_slice_65	0.928	0.039	0.017	0.928	38.6	16.7	0.875	34.8	14.4	0.760	38.4	16.3
PM03022021_slice_66	0.925	0.039	0.017	0.925	39.4	16.5	0.869	35.6	14.4	0.765	39.1	15.4
PM03022021_slice_67	0.924	0.040	0.017	0.924	39.7	16.6	0.868	35.8	14.4	0.762	39.3	15.5
PM03022021_slice_68	0.923	0.040	0.018	0.923	39.7	17.7	0.868	35.9	15.5	0.751	39.4	17.4
PM03022021_slice_69	0.922	0.040	0.017	0.922	40.2	17.1	0.866	36.1	14.9	0.756	39.9	16.5
PM03022021_slice_70	0.923	0.039	0.017	0.923	39.3	17.1	0.867	35.3	14.9	0.754	39.0	16.7
PM03022021_slice_71	0.929	0.037	0.016	0.929	37.4	15.9	0.873	33.8	14.0	0.765	37.0	14.9
PM03022021_slice_72	0.932	0.037	0.016	0.932	37.1	15.8	0.877	33.7	13.9	0.766	36.7	15.1
PM03022021_slice_73	0.935	0.035	0.015	0.935	35.3	15.3	0.878	32.1	13.6	0.764	35.0	15.0
PM03022021_slice_74	0.931	0.036	0.016	0.931	35.7	15.6	0.871	32.7	14.0	0.768	35.3	13.9
PM03022021_slice_75	0.929	0.035	0.016	0.929	35.4	15.5	0.867	32.6	14.0	0.751	35.2	15.2
PM03022021_slice_76	0.929	0.036	0.015	0.929	35.5	15.4	0.865	33.0	13.9	0.750	35.3	14.7
PM03022021_slice_77	0.927	0.036	0.016	0.927	35.6	15.7	0.863	33.3	14.3	0.748	35.4	14.5
PM03022021_slice_78	0.928	0.036	0.016	0.928	35.8	15.9	0.864	33.4	14.5	0.741	35.6	15.4
PM03022021_slice_79	0.933	0.034	0.016	0.933	34.0	15.7	0.869	31.7	14.3	0.741	33.9	15.4
PM03022021_slice_80	0.936	0.033	0.015	0.936	33.3	14.9	0.872	31.1	13.6	0.749	33.1	13.9
PM03022021_slice_81	0.935	0.034	0.015	0.935	33.7	15.3	0.872	31.4	14.0	0.746	33.5	14.8
PM03022021_slice_82	0.935	0.034	0.015	0.935	34.4	15.4	0.872	32.0	14.1	0.748	34.2	14.8
PM03022021_slice_83	0.931	0.035	0.016	0.931	35.1	15.8	0.866	32.6	14.4	0.741	34.9	15.1
PM03022021_slice_84	0.929	0.036	0.016	0.929	35.7	16.1	0.865	33.0	14.6	0.736	35.6	15.7
PM03022021_slice_85	0.926	0.037	0.017	0.926	36.5	16.8	0.860	33.7	15.1	0.730	36.3	16.4
PM03022021_slice_86	0.926	0.036	0.017	0.926	36.4	16.6	0.861	33.6	15.0	0.734	36.2	16.2
PM03022021_slice_87	0.924	0.037	0.017	0.924	36.5	17.1	0.858	33.9	15.5	0.731	36.3	16.8
PM03022021_slice_88	0.926	0.036	0.016	0.926	35.8	16.4	0.860	33.4	15.0	0.739	35.6	15.8
PM03022021_slice_89	0.930	0.035	0.016	0.930	35.1	16.2	0.865	32.9	14.8	0.745	34.9	15.2
PM03022021_slice_90	0.933	0.034	0.016	0.933	34.4	16.0	0.867	32.2	14.7	0.741	34.3	15.5
PM03022021_slice_91	0.930	0.035	0.016	0.930	35.1	16.1	0.861	33.0	14.8	0.736	35.0	15.3
PM03022021_slice_92	0.925	0.036	0.017	0.925	36.3	16.6	0.853	33.8	15.1	0.728	36.1	15.9
PM03022021_slice_93	0.924	0.037	0.017	0.924	36.7	16.9	0.851	34.0	15.4	0.720	36.5	16.4
PM03022021_slice_94	0.924	0.037	0.017	0.924	36.5	16.7	0.852	33.7	15.1	0.723	36.3	16.3
